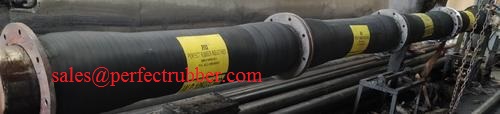

Rubber hose

'PRI' is a reliable product is all along the line. The reliability is guarantee in a number of ways, starting with the concept. Because of their high level of wear resistance and flexibility, rubber material handling houses, by nature,ideal transport line. Rubber Hoses from 'PRI' have proved to have a very long life in practice, even when pumping high abrasive media.

DESIGN CRITERIA:

The basis of success is a flawless product. We build the best rubber hose for material transport using the latest state of the art technlogy and at a competent price. Design criteria are selected on this basis and have always gone hand-in-hand with practical development.

PRODUCTION FACILITIES

To guarantee fast and efficient production of our wide product range, We have developed production lines controlled by our expert designers. We have a specialised autoclave for this technical process. Our range for rubber hose starts from 1"(ID) UPTO 24"(ID).

END CONNECTIONS

We have a wide range of end connection, specialized end connection for rubber hose and bellows are rubber lined flangs with nipples and rubber flanges with back up mild steel flanges.

FLY ASH HOSE PIPE
Application     : Recommended for conveying moist sand and cement to cement placement mixing gun nozzies. Also, recommended for conveying wet concrete and grouting mixtures, under pressure.
Construction    : TUBE: Uniform thickness seamless synthetic rubber inner tube blended with abrasion, age and weather resistance rubber.
Reinforcement   : Layers of high synthetic textile impregnated with elastomeric material.
Cover     : Static dissipating, synthetic abrasive resistant rubber with grey strip.
Electric Conductivity     : Anti-static copper wire.
Temperature     : -40°C to 60°C continuous service.
Hydrostatic Pressure     : The hoses are suitable for Working pressure of 10 kg/cm2g.
I.D.(mm)     : FROM ID:1" UPTO 24"

CEMENT GROUTING HOSE
Types    :
Types 1   : For a working pressure of 7kg/cm2g.
Types 2   : For a working pressure of 10kg/cm2g.
Types 3   : For a working pressure of 15kg/cm2g.
Vacuum:625mm of Hg.
Application    : Cement/Barytes suction & discharge for construction, Mining and Bulk cement handling units.
Construction   : TUBE: Uniform thickness seamless synthetic rubber inner tube blended with abrasion,age and weather resistance rubber.
Reinforcement   : Synthetic, high tensile textile impregnated with elastomeric material with steel wire helix
Cover     : Black colors, weather & abrasion cover with gray strip.
Temperature     : -42°C to 82°C continuous service.
I.D.(mm)     : FROM ID:1" UPTO 24"

AIR HOSE

AIR DRILL HOSE :-
CONSTRUCTION -
  • TUBE : Black nitrile oil resistant.
  • RElNFORCEMENT : High strength textile cords.
  • COVER : Black natural rubber to withstand severe resistance to abrasion.


    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 22 7/8" 17 300 76 1100
    19 3/4" 30 1 5/32" 17 300 76 1100
    25 1" 36 1 7/16" 17 300 76 1100
    32 1 1/4" 47 1 7/8" 17 300 76 1100
    38 1 1/2" 51 2" 17 300 76 1100
    51 2" 67 2 5/16" 14 200 54 780
    63 2 1/2" 79 3 1/8" 14 300 54 780
    76 3" 96 3 25/32" 14 200 54 780


    AIR & VAPOUR DUCTING HOSE :-
    CONSTRUCTION -
  • TUBE : Black nitrile oil resistant.
  • RElNFORCEMENT : Wire reinforced, multiple piles of wrapped fabric.
  • COVER : Black natural rubber / NBR to withstand severe resistance to abrasion.
  • VACUUM:700Hg.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 22 7/8" 2 30 8 120
    19 3/4" 30 1 5/32" 2 30 8 120
    25 1" 36 1 7/16" 2 30 8 120
    32 1 1/4" 47 1 7/8" 2 30 8 120
    38 1 1/2" 51 2" 2 30 8 120
    51 2" 67 2 5/16" 2 30 8 120
    63 2 1/2" 76 3" 2 30 8 120
    76 3" 90 3 9/16" 2 30 8 120
    102 4" 119 4 23/32" 2 30 8 120
    127 5" 145 5 23/32" 2 30 8 120
    152 6" 171 6 23/32" 2 30 8 120

    COMPRESSOR AIR HOSE :-
    CONSTRUCTION -
  • TUBE : Black NR / SBR.
  • RElNFORCEMENT : Two plies of textile yarn / rubberised fabric.
  • COVER : Black NR / SBR.


    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 22 7/8" 7 100 28 410
    19 3/4" 32 1 1/4" 7 100 28 410
    25 1" 38 1 1/2" 7 100 28 410


    WATER HOSE

    LIGHT WEIGHT LAYFLAT DELIVERY HOSE :-
    CONSTRUCTION -
  • TUBE : Black NR / SBR.
  • RElNFORCEMENT : Single / Multiple piles of rubberised fabric.
  • COVER : Black NR / SBR.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 23 29/32" 7 100 26 380
    16 5/8" 26 1 1/32" 7 100 26 380
    19 3/4" 29 1 1/8" 7 100 26 380
    22 7/8" 32 1 1/4" 7 100 26 380
    25 1" 35 1 3/8" 7 100 26 380
    32 1 1/4" 42 1 21/32" 7 100 26 380
    38 1 1/2" 48 1 7/8" 5.5 80 18 260
    51 2" 61 2 11/32" 5.5 80 18 260
    57 2 1/4" 67 2 5/8" 5.5 80 18 260
    60 2/38" 70 2 3/4" 5.5 80 18 260
    63 2/12" 76 3" 3 40 12 180
    76 3" 96 3 25/32" 3 40 12 180
    102 4" 127 5" 3 40 12 180
    127 5" 152 6" 3 40 12 180
    152 6" 181 7 1/8" 3 40 12 180
    203 8" 231 9 1/8" 3 40 12 180
    254 10" 280 11" 3 40 12 180
    305 12" 330 13" 3 40 12 180


    WATER SUCTION & DELIVERY HOSE :-
    CONSTRUCTION -
  • TUBE : Black NR / SBR.
  • RElNFORCEMENT : Multiple piles of wrapped fabric, wire reinforced.
  • COVER : Black NR / SBR.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    25 1" 38 1 1/2" 7 100 26 380
    32 1 1/4" 45 1 3/4" 7 100 26 380
    38 1 1/2" 51 2" 7 100 26 380
    51 2" 64 2 17/32" 7 100 26 380
    63 2 1/2" 77 3 1/32" 7 100 26 380
    76 3" 96 3 25/32" 7 100 26 380
    89 3 1/2" 110 4 3/8" 7 100 26 380
    102 4" 122 4 27/32" 5.5 80 20 290
    127 5" 149 5 7/8" 5.5 80 20 290
    152 6" 174 6 7/8" 5.5 80 20 290
    203 8" 235 9 3/16" 5.5 80 20 290
    254 10" 286 11 1/4" 5.5 80 20 290


    HEAVY DUTY WATER SUCTION & DELIVERY HOSE :-
    CONSTRUCTION -
  • TUBE : Black NR / SBR.
  • RElNFORCEMENT : High strength synthetic cords, high tensile wire helix.
  • COVER : Black NR / SBR.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    25 1" 35 1 3/8" 14 200 46 670
    32 1 1/4" 42 1 21/32" 14 200 46 670
    38 1 1/2" 48 1 7/8" 14 200 46 670
    51 2" 63 2 1/2" 10.5 150 41 590
    57 2 1/4" 71 2 25/32" 10.5 150 41 590
    60 2 3/8" 76 3" 10.5 150 41 590
    63 2 1/2" 78 3 1/8" 10.5 150 41 590
    76 3" 96 3 25/32" 10.5 150 41 590
    102 4" 127 5" 10.5 150 41 590
    127 5" 152 6" 10.5 150 41 590
    152 6" 177 7" 10.5 150 41 590
    203 8" 228 9" 7 100 28 400
    254 10" 282 11 1/8" 7 100 28 400
    305 12" 345 13 9/16" 7 100 28 400

    CHEMICAL HOSE

    CHEMICAL HOSE :-
    CONSTRUCTION -
  • TUBE : Natural rubber, black colour, specifically compunded to resist acids salts and bases.
  • RElNFORCEMENT : Multiple plies of wrapped fabric.
  • COVER : Black SBR / NR specifically compunded for chemical service.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 23 29/32" 7 100 26 380
    16 5/8" 26 1 1/32" 7 100 26 380
    19 3/4" 29 1 1/8" 7 100 26 380
    22 7/8" 32 1 1/4" 7 100 26 380
    25 1" 35 1 3/8" 7 100 26 380
    32 1 1/4" 42 1 21/32" 7 100 26 380
    38 1 1/2" 48 1 7/8" 5.5 80 18 260
    51 2" 61 2 11/32" 5.5 80 18 260
    57 2 1/4" 67 2 5/8" 5.5 80 18 260
    60 2 3/8" 70 2 3/4" 5.5 80 18 260
    63 2 1/2" 73 2 7/8" 5.5 80 18 260
    76 3" 96 3 25/32" 5.5 80 18 260
    102 4" 122 4 27/32" 5.5 80 18 260
    127 5" 149 5 7/8" 5.5 80 18 260

    CHEMICAL SUCTION & DELIVERY HOSE :-
    CONSTRUCTION -
  • TUBE : Synthetic rubber specifically compunded to withstand oxidising solutions and other solutions at higher temperature.
  • RElNFORCEMENT : Multiple plies of wrapped fabric wire reinforced.
  • COVER : Black SBR / NR specifically compunded to withstand chemical service.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    25 1" 35 1 3/8" 7 100 26 380
    32 1 1/4" 42 1 21/32" 7 100 26 380
    38 1 1/2" 48 1 7/8" 5.5 80 18 260
    51 2" 61 2 11/32" 5.5 80 18 260
    57 2 1/4" 67 2 5/8" 5.5 80 18 260
    60 2 3/8" 70 2 3/4" 5.5 80 18 260
    63 2 1/2" 73 2 7/8" 5.5 80 18 260
    76 3" 96 3 25/32" 5.5 80 18 260
    102 4" 122 4 27/32" 5.5 80 18 260
    127 5" 149 5 7/8" 5.5 80 18 260

    SANDBLAST HOSE

    SANDBLAST HOSE :-
    CONSTRUCTION -
  • TUBE : Thick black natural rubber tube.
  • RElNFORCEMENT : Multiple plies of wrapped fabric, antistatic copper wire.
  • COVER : Black NR / SBR.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    13 1/2" 29 1 5/32" 10.5 150 49 710
    19 3/4" 35 1 3/8" 10.5 150 49 710
    25 1" 42 1 21/32" 10.5 150 49 710
    32 1 1/4" 48 2" 10.5 150 49 710
    38 1 1/2" 63 2 1/2" 10.5 150 49 710
    51 2" 70 2 3/4" 10.5 150 49 710

    BULK MATERIAL HOSE

    MATERIAL HANDLING HOSE :-
    CONSTRUCTION -
  • TUBE : Black antistatic natural rubber.
  • RElNFORCEMENT : High tensile steel wire, multiple plies of wrapped fabric.
  • COVER : Black natural rubber. Antistatic copper wire can be incorporated on request.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    60 2 3/8" 76 3" 5.5 80 16.5 240
    63 2 1/2" 81 3 1/4" 5.5 80 16.5 240
    76 3" 92 3 5/8" 5.5 80 16.5 240
    102 4" 121 4 3/4" 5.5 80 16.5 240
    127 5" 146 5 3/4" 5.5 80 16.5 240
    152 6" 172 6 3/4" 5.5 80 16.5 240

    SLURRY DELIVERY HOSE :-
    CONSTRUCTION -
  • TUBE : Abrasion resistant thick black NR / SBR tube.
  • RElNFORCEMENT : Multiple plies of wrapped fabric, wire helix.
  • COVER : Black natural rubber.



    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    51 2" 66 2 19/32" 7 100 40 580
    63 2 1/2" 79 3 3/32" 7 100 40 580
    76 3" 94 3 11/16" 7 100 40 580
    102 4" 118 4 21/32" 7 100 40 580
    127 5" 144 5 11/16" 7 100 40 580
    152 6" 169 6 21/32" 7 100 40 580
    203 8" 231 9 1/8" 7 100 40 580

    BULK MATERIAL TRANSFER HOSE :-
    CONSTRUCTION -
  • TUBE : Highly abrasion resistant black natural rubber.
  • RElNFORCEMENT : High strength textile yam, wire helix.
  • COVER : Abrasion resistance black NR / SBR.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    51 2" 72 2 7/8" 10.5 150 47 680
    63 2 1/2" 86 3 13/32" 10.5 150 47 680
    76 3" 101 3 31/32" 10.5 150 47 680
    102 4" 129 5 3/32" 10.5 150 47 680
    127 5" 155 6 3/32" 10.5 150 47 680
    152 6" 181 7 3/32" 10.5 150 47 680
    203 8" 242 9 17/32" 7 100 40 580
    254 10" 293 11 17/32" 7 100 28 580

    LIGHT WEIGHT DRY MATERIAL HANDLING HOSE :-
    CONSTRUCTION -
  • TUBE : Black NR / SBR.
  • RElNFORCEMENT : Multiple plies of wrapped fabric.
  • COVER : Black NR, abrasion resistant.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    51 2" 60 2 3/8" 3.5 50 14 200
    63 2 1/2" 73 3 7/8" 3.5 50 14 200
    76 3" 86 3 13/32" 3.5 50 14 200
    102 4" 116 4 9/16" 3.5 50 14 200
    127 5" 141 5 9/16" 3.5 50 10.5 150
    152 6" 170 6 5/8" 3.5 50 10.5 150
    203 8" 213 8 3/8" 3.5 50 10.5 150
    254 10" 264 10 3/8" 3.5 50 10.5 150

    OIL DISCHARGE HOSE

    OIL DISCHARGE HOSE :-
    CONSTRUCTION -
  • TUBE : Black nitrile, specifically compunded to withstand oils.
  • RElNFORCEMENT : Multiple plies of wrapped fabric. Built in antistatic copper wire.
  • COVER : Black Nitrile / Chloroprene.


    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    25 1" 38 1 1/2" 10.5 150 35 500
    32 1 1/4" 45 1 3/4" 10.5 150 35 500
    38 1 1/2" 51 2" 10.5 150 35 500
    51 2" 64 2 17/32" 10.5 150 35 500
    57 2 1/4" 73 2 7/8" 10.5 150 35 500
    60 2 3/8" 77 3 1/32" 10.5 150 35 500
    63 2 1/2" 88 3 15/32" 10.5 150 35 500
    76 3" 95 3 9/16" 10.5 150 35 500
    102 4" 122 4 13/16" 10.5 150 35 500
    127 5" 149 5 7/8" 7 100 21 300
    152 6" 174 6 7/8" 7 100 21 300
    203 8" 235 9 1/6" 7 100 21 300
    254 10" 286 11 1/4" 7 100 21 300

    OIL SUCTION & DISCHARGE HOSE :-
    CONSTRUCTION -
  • TUBE : Black nitrile, specifically compunded to withstand oils. Gasolines & oils.
  • RElNFORCEMENT : Multiple plies of wrapped fabric. Wire reinforced to withstand maximum suction, built in antistatic copper wire.
  • COVER : Black Nitrile / Chloroprene.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    25 1" 38 1 1/2" 7 100 21 300
    32 1 1/4" 48 1 7/8" 7 100 21 300
    38 1 1/2" 55 2 5/32" 7 100 21 300
    51 2" 70 2 3/4" 7 100 21 300
    57 2 1/4" 80 3 5/32" 7 100 21 300
    60 2 3/8" 82 3 7/32" 7 100 21 300
    63 2 1/2" 90 3 17/32" 7 100 21 300
    76 3" 96 3 3/4" 7 100 21 300
    102 4" 121 4 3/4" 7 100 21 300
    127 5" 149 5 7/8" 7 100 21 300
    152 6" 174 6 7/8" 7 100 21 300
    203 8" 235 9 1/6" 7 100 21 300
    254 10" 286 11 1/4" 7 100 21 300

    PETROL HOSE :-
    CONSTRUCTION -
  • TUBE : Black nitrile, specifically compunded to withstand oils.
  • RElNFORCEMENT : Two plies of textile cord. Built in antistatic copper wire.
  • COVER : Black Nitrile / Chloroprene.

    • ID APPROX.OD. WORKING PRESSURE THEORITICAL BURST PRESSURE
    MM IN MM IN BAR PSI BAR PSI
    19 3/4" 31 1 1/4" 10.5 150 35 500
    25 1" 38 1 1/2" 10.5 150 35 500
